- INDUCTION MOTORS - REVERSIBLE MOTORS
- ELECTROMAGNETIC BRAKE MOTORS - TERMINAL BOX TYPE MOTORS
- UNIT TYPE SPEED CONTROL MOTORS - INDUCTION SPEED CONTROL MOTORS
- REVERSIBLE SPEED CONTROL MOTORS - SPEED CONTROL ELECTROMAGNETIC


- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

60

S6I06GA-V12
S6I06GA-V12CE		 SUA06IA-V12 4 6 1 ø 110 60 Cont. 90-1700 0.55 0.055 0.40 0.040 0.52 0.052 2.5
S6I06GB-V12
S6I06GB-V12CE		 SUA06IB-V12 4 6 1 ø 220 60 Cont. 90-1700 0.55 0.055 0.40 0.040 0.52 0.052 0.7
S6I06GC-V12
S6I06GC-V12CE		 SUA06IC-V12 4 6 1 ø 100 50 Cont. 90-1400 0.48 0.048 0.30 0.030 0.40 0.040 2.5
60 90-1700
S6I06GD-V12
S6I06GD-V12CE		 SUA06ID-V12 4 6 1 ø 200 50 Cont. 90-1400 0.48 0.048 0.30 0.030 0.40 0.040 0.7
60 90-1700
S6I06GX-V12
S6I06GX-V12CE		 SUA06IX-V12 4 6 1 ø 220 50 Cont. 90-1400 0.35 0.035 0.22 0.022 0.35 0.035 0.7
1 ø 240 0.45 0.045 0.22 0.022 0.42 0.042
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

60

S6I06GA-S24
S6I06GA-S24CE		 SSA01-SRSS
SSA03-SRSS		 4 6 1 ø 110 60 Cont. 90-1700 0.55 0.055 0.40 0.040 0.52 0.052 2.5
S6I06GB-S24
S6I06GB-S24CE		 SSB01-SRSS
SSB03-SRSS		 4 6 1 ø 220 60 Cont. 90-1700 0.55 0.055 0.40 0.040 0.52 0.052 0.7
S6I06GC-S24
S6I06GC-S24CE		 SSC01-SRSS
SSC03-SRSS		 4 6 1 ø 100 50 Cont. 90-1400 0.48 0.048 0.30 0.030 0.40 0.040 2.5
60 90-1700
S6I06GD-S24
S6I06GD-S24CE		 SSD01-SRSS
SSD03-SRSS		 4 6 1 ø 200 50 Cont. 90-1400 0.48 0.048 0.30 0.030 0.40 0.040 0.7
60 90-1700
S6I06GX-S24
S6I06GX-S24CE		 SSX01-SRSS
SSX03-SRSS		 4 6 1 ø 220 50 Cont. 90-1400 0.35 0.035 0.22 0.022 0.35 0.035 0.7
1 ø 240 0.45 0.045 0.22 0.022 0.42 0.042
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 500 416 300 250 200 166 150 120 100 83 75 60 50 41 37
S6DA□B kg-cm 1.3 1.5 2.1 2.6 3.2 3.9 4.3 5.4 6.4 7.7 7.7 9.7 11.6 13.9 15.5
N-m 0.127 0.147 0.206 0.255 0.314 0.382 0.421 0.529 0.627 0.755 0.755 0.951 1.137 1.362 1.519
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200 250
rpm 30 25 20 16 15 12 10 8 7.5 6
S6DA□B kg-cm 17.5 21.0 26.2 30.0 30.0 30.0 30.0 30.0 30.0 30.0
N-m 1.715 2.058 2.568 2.942 2.942 2.942 2.942 2.942 2.942 2.942
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45
S6DA□B kg-cm 1.0 1.3 1.7 2.1 2.6 3.1 3.5 4.4 5.2 6.3 6.3 7.8 9.4 11.3 12.6
N-m 0.098 0.127 0.167 0.206 0.255 0.304 0.343 0.431 0.510 0.617 0.617 0.764 0.921 1.107 1.235
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200 250
rpm 36 30 24 20 18 15 12 10 9 7.2
S6DA□B kg-cm 14.2 17.0 21.3 25.5 28.4 30.0 30.0 30.0 30.0 30.0
N-m 1.392 1.666 2.087 2.499 2.783 2.942 2.942 2.942 2.942 2.942



- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

70

S7I15GA-S12
S7I15GA-S12(TP)
S7I15GA-S12CE		 SRA02
SRA02CE		 4 15 1 ø 110 60 Cont. 90-1700 1.15 0.115 0.60 0.060 0.90 0.090 5.0
S7I15GB-S12
S7I15GB-S12(TP)
S7I15GB-S12CE		 SRB02
SRB02CE		 4 15 1 ø 220 60 Cont. 90-1700 1.15 0.115 0.60 0.060 0.90 0.090 1.2
S7I15GC-S12
S7I15GC-S12(TP)
S7I15GC-S12CE		 SRC02
SRC02CE		 4 15 1 ø 100 50 Cont. 90-1400 1.10 0.110 0.40 0.040 0.75 0.075 5.0
60 90-1700 1.00 0.100
S7I15GD-S12
S7I15GD-S12(TP)
S7I15GD-S12CE		 SRD02
SRD02CE		 4 15 1 ø 200 50 Cont. 90-1400 1.10 0.110 0.40 0.040 0.75 0.075 1.2
60 90-1700 1.00 0.100
S7I15GX-S12
S7I15GX-S12CE		 SRX02
SRX02CE		 4 15 1 ø 220 50 Cont. 90-1400 1.05 0.105 0.50 0.050 0.70 0.070 0.9
1 ø 240 1.25 0.125 0.60 0.060 0.85 0.085
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

70

S7I15GA-S24
S7I15GA-S24(TP)
S7I15GA-S24CE		 SSA02-SRSS
SSA03-SRSS		 4 15 1 ø 110 60 Cont. 90-1700 1.15 0.115 0.60 0.060 0.90 0.090 5.0
S7I15GB-S24
S7I15GB-S24(TP)
S7I15GB-S24CE		 SSB02-SRSS
SSB03-SRSS		 4 15 1 ø 220 60 Cont. 90-1700 1.15 0.115 0.60 0.060 0.90 0.090 1.2
S7I15GC-S24
S7I15GC-S24(TP)
S7I15GC-S24CE		 SSC02-SRSS
SSC03-SRSS		 4 15 1 ø 100 50 Cont. 90-1400 1.10 0.110 0.40 0.040 0.75 0.075 5.0
60 90-1700 1.00 0.100
S7I15GD-S24
S7I15GD-S24(TP)
S7I15GD-S24CE		 SSD02-SRSS
SSD03-SRSS		 4 15 1 ø 200 50 Cont. 90-1400 1.10 0.110 0.40 0.040 0.75 0.075 1.2
60 90-1700 1.00 0.100
S7I15GX-S24
S7I15GX-S24CE		 SSX02-SRSS
SSX03-SRSS		 4 15 1 ø 220 50 Cont. 90-1400 1.05 0.105 0.50 0.050 0.70 0.070 0.9
1 ø 240 1.25 0.125 0.60 0.060 0.85 0.085
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50
rpm 500 416 300 250 200 166 150 120 100 83 75 60 50 41 37 30
S7KA□B kg-cm 3.2 3.9 5.4 6.5 8.1 9.7 10.8 13.5 16.2 19.4 19.4 24.2 29.1 34.9 38.8 43.6
N-m 0.314 0.382 0.530 0.637 0.794 0.951 1.059 1.324 1.587 1.902 1.902 2.373 2.854 3.423 3.805 4.276
MODEL GEAR RATIO 60 75 90 100 120 150 180 200
rpm 25 20 16 15 12 10 8 7.5
S7KA□B kg-cm 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0
N-m 4.900 4.900 4.900 4.900 4.900 4.900 4.900 4.900
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50
rpm 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36
S7KA□B kg-cm 3.0 3.6 5.1 6.1 7.6 9.1 10.1 12.7 15.2 18.2 18.2 22.8 27.3 32.8 36.5 41.0
N-m 0.294 0.353 0.500 0.598 0.745 0.892 0.990 1.245 1.491 1.785 1.785 2.236 2.677 3.217 3.579 4.021
MODEL GEAR RATIO 60 75 90 100 120 150 180 200
rpm 30 24 20 18 15 12 10 9
S7KA□B kg-cm 49.2 50.0 50.0 50.0 50.0 50.0 50.0 50.0
N-m 4.825 4.900 4.900 4.900 4.900 4.900 4.900 4.900



- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

80

S8I15GA-S12
S8I15GA-S12(TP)
S8I15GA-S12CE		 SRA02
SRA02CE		 4 15 1 ø 110 60 Cont. 90-1700 1.50 0.150 0.35 0.035 0.75 0.075 4.0
S8I15GB-S12
S8I15GB-S12(TP)
S8I15GB-S12CE		 SRB02
SRB02CE		 4 15 1 ø 220 60 Cont. 90-1700 1.50 0.150 0.35 0.035 0.75 0.075 1.0
S8I15GC-S12
S8I15GC-S12(TP)
S8I15GC-S12CE		 SRC02
SRC02CE		 4 15 1 ø 100 50 Cont. 90-1400 1.20 0.120 0.32 0.032 0.60 0.060 4.0
60 90-1700 1.00 0.100
S8I15GD-S12
S8I15GD-S12(TP)
S8I15GD-S12CE		 SRD02
SRD02CE		 4 15 1 ø 200 50 Cont. 90-1400 1.20 0.120 0.32 0.032 0.60 0.060 1.0
60 90-1700 1.00 0.100
S8I15GX-S12
S8I15GX-S12CE		 SRX02
SRX02CE		 4 15 1 ø 220 50 Cont. 90-1400 1.20 0.120 0.35 0.035 0.55 0.55 1.0
1 ø 240 1.40 0.140 0.35 0.035 0.60 0.60
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

80

S8I15GA-S24
S8I15GA-S24(TP)
S8I15GA-S24CE		 SSA02-SRSS
SSA03-SRSS		 4 15 1 ø 110 60 Cont. 90-1700 1.50 0.150 0.35 0.035 0.75 0.075 4.0
S8I15GB-S24
S8I15GB-S24(TP)
S8I15GB-S24CE		 SSB02-SRSS
SSB03-SRSS		 4 15 1 ø 220 60 Cont. 90-1700 1.50 0.150 0.35 0.035 0.75 0.075 1.0
S8I15GC-S24
S8I15GC-S24(TP)
S8I15GC-S24CE		 SSC02-SRSS
SSC03-SRSS		 4 15 1 ø 100 50 Cont. 90-1400 1.20 0.120 0.32 0.032 0.60 0.060 4.0
60 90-1700 1.00 0.100
S8I15GD-S24
S8I15GD-S24(TP)
S8I15GD-S24CE		 SSD02-SRSS
SSD03-SRSS		 4 15 1 ø 200 50 Cont. 90-1400 1.20 0.120 0.32 0.032 0.60 0.060 1.0
60 90-1700 1.00 0.100
S8I15GX-S24
S8I15GX-S24CE		 SSX02-SRSS
SSX03-SRSS		 4 15 1 ø 220 50 Cont. 90-1400 1.20 0.120 0.35 0.035 0.55 0.55 1.0
1 ø 240 1.40 0.140 0.35 0.035 0.60 0.60
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 500 416 300 250 200 166 150 120 100 83 75 60 50 41 37
S8KA□B kg-cm 3.4 4.1 5.7 6.8 8.5 10.2 11.3 14.2 17.0 20.4 20.4 25.6 30.7 36.8 40.9
N-m 0.333 0.402 0.559 0.666 0.833 1.000 1.107 1.392 1.666 1.999 1.999 2.509 3.009 3.606 4.008
MODEL GEAR RATIO 20 25 30 36 40 50 60 75 90 100 120 150 180 200
rpm 75 60 50 41 37 30 25 20 16 15 12 10 8 7.5
S8KA□B kg-cm 20.4 25.6 30.7 36.8 40.9 46.2 50.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0
N-m 1.999 2.509 3.009 3.606 4.008 4.528 4.900 4.900 4.900 4.900 4.900 4.900 4.900 4.900
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45
S8KA□B kg-cm 2.9 3.5 4.9 5.8 7.3 8.7 9.7 12.2 14.6 17.5 17.5 21.9 26.3 31.5 35.0
N-m 0.284 0.343 0.481 0.568 0.715 0.853 0.951 1.196 1.432 1.715 1.715 2.146 2.577 3.087 3.430
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200
rpm 36 30 24 20 18 15 12 10 9
S8KA□B kg-cm 39.6 47.5 50.0 50.0 50.0 50.0 50.0 50.0 50.0
N-m 3.881 4.655 4.900 4.900 4.900 4.900 4.900 4.900 4.900

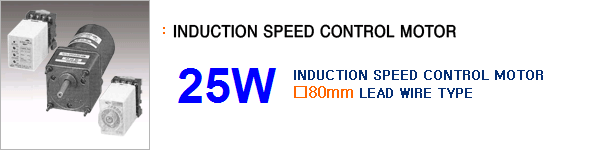

- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

80

S8I25GA-S12
S8I25GA-S12(TP)
S8I25GA-S12CE		 SRA02
SRA02CE		 4 25 1 ø 110 60 Cont. 90-1700 1.70 0.170 0.08 0.080 1.50 0.150 6.0
S8I25GB-S12
S8I25GB-S12(TP)
S8I25GB-S12CE		 SRB02
SRB02CE		 4 25 1 ø 220 60 Cont. 90-1700 1.70 0.170 0.08 0.080 1.50 0.150 1.5
S8I25GC-S12
S8I25GC-S12(TP)
S8I25GC-S12CE		 SRC02
SRC02CE		 4 25 1 ø 100 50 Cont. 90-1400 1.60 0.160 0.55 0.055 1.10 0.110 6.0
60 90-1700 1.50 0.150
S8I25GD-S12
S8I25GD-S12(TP)
S8I25GD-S12CE		 SRD02
SRD02CE		 4 25 1 ø 200 50 Cont. 90-1400 1.60 0.160 0.55 0.055 1.10 0.110 1.5
60 90-1700 1.50 0.160
S8I25GX-S12
S8I25GX-S12CE		 SRX02
SRX02CE		 4 25 1 ø 220 50 Cont. 90-1400 1.50 0.150 0.50 0.050 1.00 0.100 1.5
1 ø 240 1.80 0.180 0.50 0.050 1.20 0.120
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

80

S8I25GA-S24
S8I25GA-S24(TP)
S8I25GA-S24CE		 SSA02-SRSS
SSA03-SRSS		 4 25 1 ø 110 60 Cont. 90-1700 1.70 0.170 0.08 0.080 1.50 0.150 6.0
S8I25GB-S24
S8I25GB-S24(TP)
S8I25GB-S24CE		 SSB02-SRSS
SSB03-SRSS		 4 25 1 ø 220 60 Cont. 90-1700 1.70 0.170 0.08 0.080 1.50 0.150 1.5
S8I25GC-S24
S8I25GC-S24(TP)
S8I25GC-S24CE		 SSC02-SRSS
SSC03-SRSS		 4 25 1 ø 100 50 Cont. 90-1400 1.60 0.160 0.55 0.055 1.10 0.110 6.0
60 90-1700 1.50 0.150
S8I25GD-S24
S8I25GD-S24(TP)
S8I25GD-S24CE		 SSD02-SRSS
SSD03-SRSS		 4 25 1 ø 200 50 Cont. 90-1400 1.60 0.160 0.55 0.055 1.10 0.110 1.5
60 90-1700 1.50 0.160
S8I25GX-S24
S8I25GX-S24CE		 SSX02-SRSS
SSX03-SRSS		 4 25 1 ø 220 50 Cont. 90-1400 1.50 0.150 0.50 0.050 1.00 0.100 1.5
1 ø 240 1.80 0.180 0.50 0.050 1.20 0.120
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 500 416 300 250 200 166 150 120 100 83 75 60 50 41 37
S8KA□B kg-cm 5.3 6.4 8.9 10.7 13.4 16.0 17.8 22.3 26.7 32.1 32.1 40.2 48.2 57.8 64.2
N-m 0.519 0.627 0.872 1.049 1.313 1.568 1.744 2.185 2.617 3.146 3.146 3.940 4.724 5.664 6.292
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200
rpm 30 25 20 16 15 12 10 8 7.5
S8KA□B kg-cm 72.6 80.0 80.0 80.0 80.0 80.0 80.0 80.0 80.0
N-m 7.115 7,840 7,840 7,840 7,840 7,840 7,840 7,840 7,840
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45
S8KA□B kg-cm 4.4 5.2 7.3 8.7 10.9 13.1 14.6 18.2 21.9 26.2 26.3 32.9 39.4 47.3 52.6
N-m 0.431 0.510 0.715 0.853 1.068 1.284 1.431 1.784 2.146 2.568 2.577 3.224 3.861 4.635 5.155
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200
rpm 36 30 24 20 18 15 12 10 9
S8KA□B kg-cm 59.4 71.3 80.0 80.0 80.0 80.0 80.0 80.0 80.0
N-m 5.821 6.987 7,840 7,840 7,840 7,840 7,840 7,840 7,840



- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9I40GA(  )-S12
S9I40GA(  )-S12(TP)
S9I40GA(  )-S12CE		 SRA02
SRA02CE		 4 40 1 ø 110 60 Cont. 90-1700 2.70 0.270 1.00 0.100 2.20 0.220 10.0
S9I40GB(  )-S12
S9I40GB(  )-S12(TP)
S9I40GB(  )-S12CE		 SRB02
SRB02CE		 4 40 1 ø 220 60 Cont. 90-1700 2.70 0.270 1.00 0.100 2.20 0.220 2.5
S9I40GC(  )-S12
S9I40GC(  )-S12(TP)
S9I40GC(  )-S12CE		 SRC02
SRC02CE		 4 40 1 ø 100 50 Cont. 90-1400 2.70 0.270 0.90 0.090 1.80 0.180 10.0
60 90-1700 2.00 0.200
S9I40GD(  )-S12
S9I40GD(  )-S12(TP)
S9I40GD(  )-S12CE		 SRD02
SRD02CE		 4 40 1 ø 200 50 Cont. 90-1400 2.70 0.270 0.90 0.090 1.80 0.180 2.5
60 90-1700 2.00 0.200
S9I40GX(  )-S12
S9I40GX(  )-S12CE		 SRX02
SRX02CE		 4 40 1 ø 220 50 Cont. 90-1400 2.50 0.250 0.70 0.070 1.70 0.170 2.0
1 ø 240 3.00 0.300 0.70 0.070 2.10 0.210
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9I40GA(  )-S24
S9I40GA(  )-S24(TP)
S9I40GA(  )-S24CE		 SSA02-SRSS
SSA03-SRSS		 4 40 1 ø 110 60 Cont. 90-1700 2.70 0.270 1.00 0.100 2.20 0.220 10.0
S9I40GB(  )-S24
S9I40GB(  )-S24(TP)
S9I40GB(  )-S24CE		 SSB02-SRSS
SSB03-SRSS		 4 40 1 ø 220 60 Cont. 90-1700 2.70 0.270 1.00 0.100 2.20 0.220 2.5
S9I40GC(  )-S24
S9I40GC(  )-S24(TP)
S9I40GC(  )-S24CE		 SSC02-SRSS
SSC03-SRSS		 4 40 1 ø 100 50 Cont. 90-1400 2.70 0.270 0.90 0.090 1.80 0.180 10.0
60 90-1700 2.00 0.200
S9I40GD(  )-S24
S9I40GD(  )-S24(TP)
S9I40GD(  )-S24CE		 SSD02-SRSS
SSD03-SRSS		 4 40 1 ø 200 50 Cont. 90-1400 2.70 0.270 0.90 0.090 1.80 0.180 2.5
60 90-1700 2.00 0.200
S9I40GX(  )-S24
S9I40GX(  )-S24CE		 SSX02-SRSS
SSX03-SRSS		 4 40 1 ø 220 50 Cont. 90-1400 2.50 0.250 0.70 0.070 1.70 0.170 2.0
1 ø 240 3.00 0.300 0.70 0.070 2.10 0.210
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 500 416 300 250 200 166 150 120 100 83 75 60 50 41 37

S9KB□B( )

 kg-cm 8.3 9.9 13.8 16.5 20.7 24.8 27.5 34.4 41.3 49.6 49.6 62.1 74.5 89.4 99.3
N-m 0.813 0.970 1.352 1.617 2.029 2.430 2.695 3.371 4.047 4.861 4.861 6.086 7.301 8.761 9.731
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200
rpm 30 25 20 16 15 12 10 8 7.5

S9KB□B( )

 kg-cm 100 100 100 100 100 100 100 100 100
N-m 9.800 9.800 9.800 9.800 9.800 9.800 9.800 9.800 9.800
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40
rpm 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45

S9KB□B()

 kg-cm 6.8 8.2 11.3 13.6 17.0 20.4 22.7 28.4 34.0 40.8 40.9 51.1 61.3 73.6 81.8
N-m 0.666 0.804 1.107 1.333 1.666 1.999 2.25 2.783 3.332 3.998 4.008 5.008 6.007 7.213 8.016
MODEL GEAR RATIO 50 60 75 90 100 120 150 180 200
rpm 36 30 24 20 18 15 12 10 9

S9KB□B()

 kg-cm 100 100 100 100 100 100 100 100 100
N-m 9.800 9.800 9.800 9.800 9.800 9.800 9.800 9.800 9.800



- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9I60GA(  )-S12
S9I60GA(  )-S12(TP)
S9I60GA(  )-S12CE		 SRA02
SRA02CE		 4 60 1 ø 110 60 Cont. 90-1700 5.50 0.550 2.00 0.200 5.00 0.500 20.0
S9I60GB(  )-S12
S9I60GB(  )-S12(TP)
S9I60GB(  )-S12CE		 SRB02
SRB02CE		 4 60 1 ø 220 60 Cont. 90-1700 5.50 0.550 2.00 0.200 5.00 0.500 5.0
S9I60GC(  )-S12
S9I60GC(  )-S12(TP)
S9I60GC(  )-S12CE		 SRC02
SRC02CE		 4 60 1 ø 100 50 Cont. 90-1400 5.50 0.550 1.20 0.120 4.00 0.400 20.0
60 90-1700 5.00 0.500
S9I60GD(  )-S12
S9I60GD(  )-S12(TP)
S9I60GD(  )-S12CE		 SRD02
SRD02CE		 4 60 1 ø 200 50 Cont. 90-1400 5.50 0.550 1.20 0.120 4.00 0.400 5.0
60 90-1700 5.00 0.500
S9I60GX(  )-S12
S9I60GX(  )-S12CE		 SRX02
SRX02CE		 4 60 1 ø 220 50 Cont. 90-1400 5.20 0.520 0.90 0.090 3.10 0.310 3.5
1 ø 240 5.80 0.580 0.90 0.090 3.60 0.360
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9I60GA(  )-S24
S9I60GA(  )-S24(TP)
S9I60GA(  )-S24CE		 SSA03-SRSS 4 60 1 ø 110 60 Cont. 90-1700 5.50 0.550 2.00 0.200 5.00 0.500 20.0
S9I60GB(  )-S24
S9I60GB(  )-S24(TP)
S9I60GB(  )-S24CE		 SSB03-SRSS 4 60 1 ø 220 60 Cont. 90-1700 5.50 0.550 2.00 0.200 5.00 0.500 5.0
S9I60GC(  )-S24
S9I60GC(  )-S24(TP)
S9I60GC(  )-S24CE		 SSC03-SRSS 4 60 1 ø 100 50 Cont. 90-1400 5.50 0.550 1.20 0.120 4.00 0.400 20.0
60 90-1700 5.00 0.500
S9I60GD(  )-S24
S9I60GD(  )-S24(TP)
S9I60GD(  )-S24CE		 SSD03-SRSS 4 60 1 ø 200 50 Cont. 90-1400 5.50 0.550 1.20 0.120 4.00 0.400 5.0
60 90-1700 5.00 0.500
S9I60GX(  )-S24
S9I60GX(  )-S24CE		 SSX03-SRSS 4 60 1 ø 220 50 Cont. 90-1400 5.20 0.520 0.90 0.090 3.10 0.310 3.5
1 ø 240 5.80 0.580 0.90 0.090 3.60 0.360
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20
rpm 500 416 300 250 200 166 150 120 100 83 75

S9KC□B( )
S9KC□B( )-S

 kg-cm 12.2 14.6 20.3 24.3 30.4 36.5 40.5 45.6 54.8 65.7 73.0
N-m 1.196 1.431 1.989 2.381 2.989 3.577 3.696 4.469 5.370 6.439 7.154
MODEL GEAR RATIO 25 30 36 40 50 60 75 90 100 120 150 180 200
rpm 60 50 41 37 30 25 20 16 15 12 10 8 7.5

S9KC□B( )
S9KC□B( )-S

 kg-cm 82.5 99.0 119 132 165 198 200 200 200 200 200 200 200
N-m 8.085 9.702 11.66 12.94 16.17 19.40 19.60 19.60 19.60 19.60 19.60 19.60 19.60
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20
rpm 600 500 360 300 240 200 180 144 120 100 90

S9KC□B( )
S9KC□B( )-S

 kg-cm 9.72 11.7 16.2 19.4 24.3 29.2 32.4 36.5 43.8 52.6 58.4
N-m 0.953 1.147 1.588 1.901 2.381 2.862 3.175 3.577 4.292 5.155 5.723
MODEL GEAR RATIO 25 30 36 40 50 60 75 90 100 120 150 180 200
rpm 72 60 50 45 36 30 24 20 18 15 12 10 9

S9KC□B( )
S9KC□B( )-S

 kg-cm 66.0 79.2 95.0 106 132 158 177 200 200 200 200 200 200
N-m 6.468 7.762 9.310 10.39 12.94 15.48 17.35 19.60 19.60 19.60 19.60 19.60 19.60



- SPECIFICATION OF SOCKET SR TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9I90GA(  )-S12
S9I90GA(  )-S12(TP)
S9I90GA(  )-S12CE		 SRA02
SRA02CE		 4 90 1 ø 110 60 Cont. 90-1700 6.30 0.630 3.00 0.300 6.50 0.650 24.0
S9I90GB(  )-S12
S9I90GB(  )-S12(TP)
S9I90GB(  )-S12CE		 SRB02
SRB02CE		 4 90 1 ø 220 60 Cont. 90-1700 6.30 0.630 3.00 0.300 6.50 0.650 7.0
S9I90GC(  )-S12
S9I90GC(  )-S12(TP)
S9I90GC(  )-S12CE		 SRC02
SRC02CE		 4 90 1 ø 100 50 Cont. 90-1400 5.80 0.580 2.50 0.250 5.50 0.550 24.0
60 90-1700 5.30 0.530
S9I90GD(  )-S12
S9I90GD(  )-S12(TP)
S9I90GD(  )-S12CE		 SRD02
SRD02CE		 4 90 1 ø 200 50 Cont. 90-1400 5.80 0.580 2.50 0.250 5.50 0.550 7.0
60 90-1700 5.30 0.530
S9I90GX(  )-S12
S9I90GX(  )-S12CE		 SRX02
SRX02CE		 4 90 1 ø 220 50 Cont. 90-1400 5.40 0.540 2.20 0.220 4.60 0.460 5.0
1 ø 240 6.10 0.610 2.20 0.220 5.50 0.550
- SPECIFICATION OF SOCKET SS TYPE SPEED CONTROL MOTORS
SIZE
mm sq.		 　Motor Type Controller
Type		 Pole Output Voltage Freq. Duty Speed
Range		 Permissible Torque Starting Torque Cap.
at 1200rpm at 90rpm
(W) (V) (Hz) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9I90GA(  )-S24
S9I90GA(  )-S24(TP)
S9I90GA(  )-S24CE		 SSA03-SRSS 4 90 1 ø 110 60 Cont. 90-1700 6.30 0.630 3.00 0.300 6.50 0.650 24.0
S9I90GB(  )-S24
S9I90GB(  )-S24(TP)
S9I90GB(  )-S24CE		 SSB03-SRSS 4 90 1 ø 220 60 Cont. 90-1700 6.30 0.630 3.00 0.300 6.50 0.650 7.0
S9I90GC(  )-S24
S9I90GC(  )-S24(TP)
S9I90GC(  )-S24CE		 SSC03-SRSS 4 90 1 ø 100 50 Cont. 90-1400 5.80 0.580 2.50 0.250 5.50 0.550 24.0
60 90-1700 5.30 0.530
S9I90GD(  )-S24
S9I90GD(  )-S24(TP)
S9I90GD(  )-S24CE		 SSD03-SRSS 4 90 1 ø 200 50 Cont. 90-1400 5.80 0.580 2.50 0.250 5.50 0.550 7.0
60 90-1700 5.30 0.530
S9I90GX(  )-S24
S9I90GX(  )-S24CE		 SSX03-SRSS 4 90 1 ø 220 50 Cont. 90-1400 5.40 0.540 2.20 0.220 4.60 0.460 5.0
1 ø 240 6.10 0.610 2.20 0.220 5.50 0.550
- 50Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20
rpm 500 416 300 250 200 166 150 120 100 83 75

S9KC□B( )
S9KC□B( )-S

 kg-cm 18.2 21.9 30.4 36.5 45.6 54.7 60.8 68.4 82.1 98.6 110
N-m 1.784 2.146 2.979 3.577 4.469 5.361 5.958 6.703 8.046 9.663 10.78
MODEL GEAR RATIO 25 30 36 40 50 60 75 90 100 120 150 180 200
rpm 60 50 41 37 30 25 20 16 15 12 10 8 7.5

S9KC□B( )
S9KC□B( )-S

 kg-cm 124 149 178 198 200 200 200 200 200 200 200 200 200
N-m 12.15 14.60 17.44 19.40 19.60 19.60 19.60 19.60 19.60 19.60 19.60 19.60 19.60
- 60Hz
MODEL GEAR RATIO 3 3.6 5 6 7.5 9 10 12.5 15 18 20
rpm 600 500 360 300 240 200 180 144 120 100 90

S9KC□B( )
S9KC□B( )-S

 kg-cm 14.6 17.5 24.3 29.2 36.5 43.7 48.6 54.8 65.7 78.8 87.6
N-m 1.431 1.715 2.381 2.862 3.577 4.675 4.763 5.370 6.439 7.722 8.585
MODEL GEAR RATIO 25 30 36 40 50 60 75 90 100 120 150 180 200
rpm 72 60 50 45 36 30 24 20 18 15 12 10 9

S9KC□B( )
S9KC□B( )-S

 kg-cm 99.0 119 143 158 198 200 200 200 200 200 200 200 200
N-m 9.702 11.66 14.01 15.48 19.40 19.60 19.60 19.60 19.60 19.60 19.60 19.60 19.60
