- Horizontal Geared Motor (0.2 Kw ~ 2.2 Kw) - Horizontal Geared Motor (3.7 Kw ~ 15 Kw)
- Vertical Geared Motor (0.2 Kw ~ 2.2 Kw) - Vertical Geared Motor (3.7 Kw ~ 15Kw)
- Line Power (0.2 Kw ~ 2.2 Kw) - Line Power (3.7 Kw ~ 15 Kw)

  3.7kw (5HP, 3-Phase)

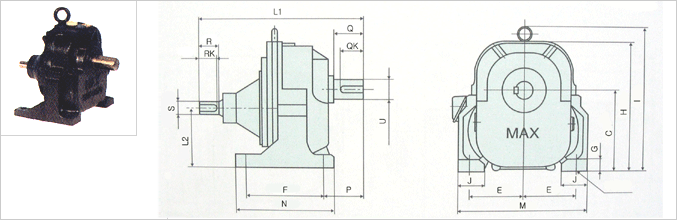

L270
CAD Data		 Output(Kw) 3.7
Gear Ratio 1/90
RPM 20
Weight(Kg) 155
L235
CAD Data		 Output(Kw) 3.7
Gear Ratio 1/60
RPM 30
Weight(Kg) 121
L205
CAD Data		 Output(Kw) 3.7
Gear Ratio 1/50 1/40
RPM 36 45
Weight(Kg) 86
L181
CAD Data		 Output(Kw) 3.7
Gear Ratio 1/30
RPM 60
Weight(Kg) 88
L172
CAD Data		 Output(Kw) 3.7
Gear Ratio 1/20 1/15 1/10
RPM 90 120 180
Weight(Kg) 74
  5.5kw (7.5HP)
L270
CAD Data		 Output(Kw) 5.5
Gear Ratio 1/60
RPM 30
Weight(Kg) 132
L235
CAD Data		 Output(Kw) 5.5
Gear Ratio 1/50 1/40
RPM 36 45
Weight(Kg) 98
L205
CAD Data		 Output(Kw) 5.5
Gear Ratio 1/30
RPM 60
Weight(Kg) 84
L181
CAD Data		 Output(Kw) 5.5
Gear Ratio 1/20 1/15 1/10
RPM 90 120 180
Weight(Kg) 60
  7.5kw (10HP)
L270
CAD Data		 Output(Kw) 7.5
Gear Ratio 1/50 1/40
RPM 36 45
Weight(Kg) 132
L235
CAD Data		 Output(Kw) 7.5
Gear Ratio 1/30
RPM 60
Weight(Kg) 98
L205
CAD Data		 Output(Kw) 7.5
Gear Ratio 1/20 1/15
RPM 90 120
Weight(Kg) 29
L181
CAD Data		 Output(Kw) 7.5
Gear Ratio 1/10
RPM 180
Weight(Kg) 60
